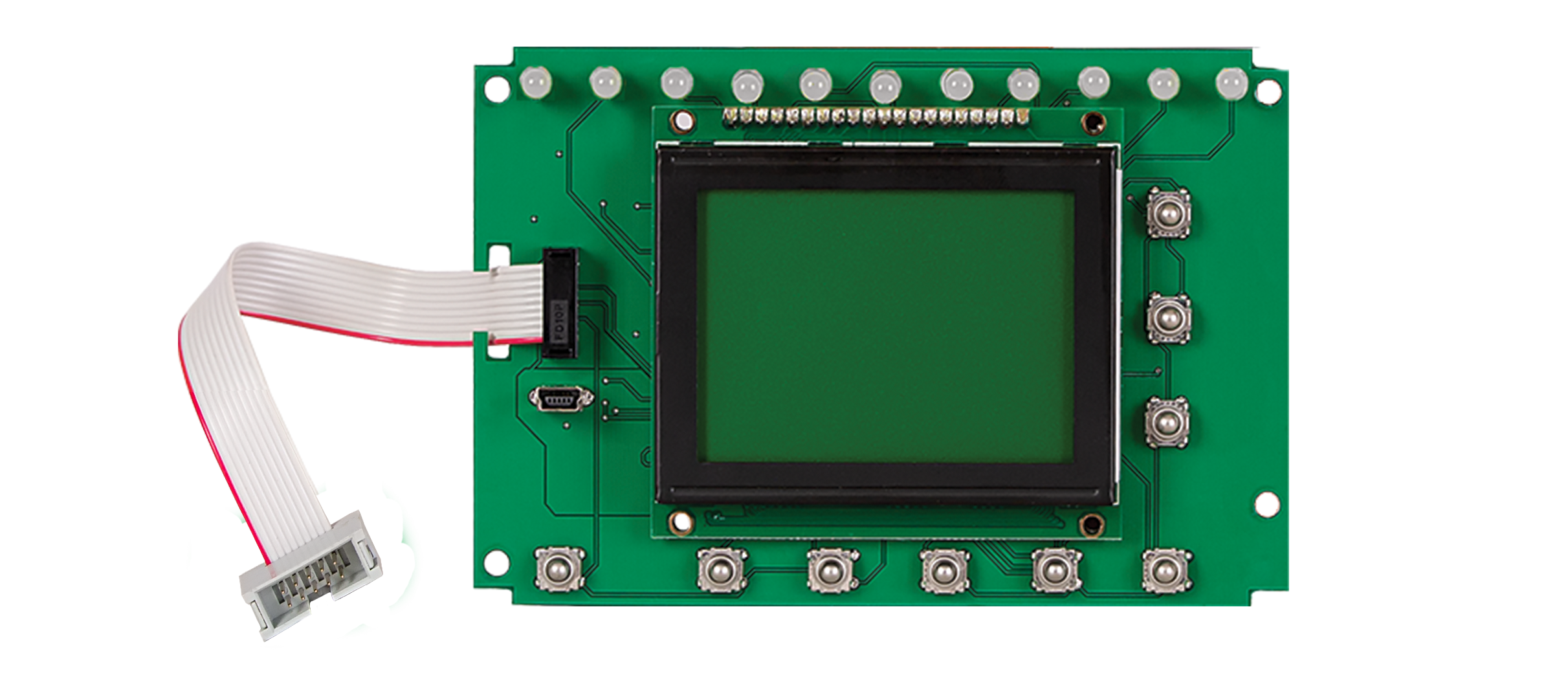

The most reported failures of Sepam relays are due to the advanced UMI module's failure. It should be noted that in the case of any abnormal functions of keys, LCD and LEDs, the operator could not monitor and change the relay functionality.
IGS313S covers all facilities of SDK313 and is compatible with:
Sepam 20 /40, all serial numbers: < 0440001 and > 0440000.
Sepam 60 series.
Sepam 80 series with Advanced UMI.
All the data required for local equipment operation may be displayed on demand:
Display of all measurement and diagnosis data in numerical format with units and/or in bar graphs.
Display of operating and alarm messages, with alarm acknowledgment and Sepam resetting
Display of the list of activated protection functions and the main settings of major protection functions
adaptation of activated protection function set points or time delays in response to new op
Adaptation of activated protection function set points or time delays in response to new operating constraints
Display of Sepam and remote module versions
Output testing and logic input status display
Display of Logipam data: status of variables, timers
Entry of 2 passwords to protect parameter and protection settings.
